 iSmart910 Automotive Diagnostic &Analysis System

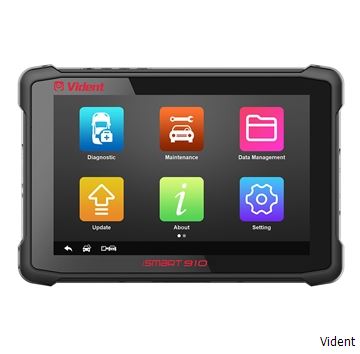

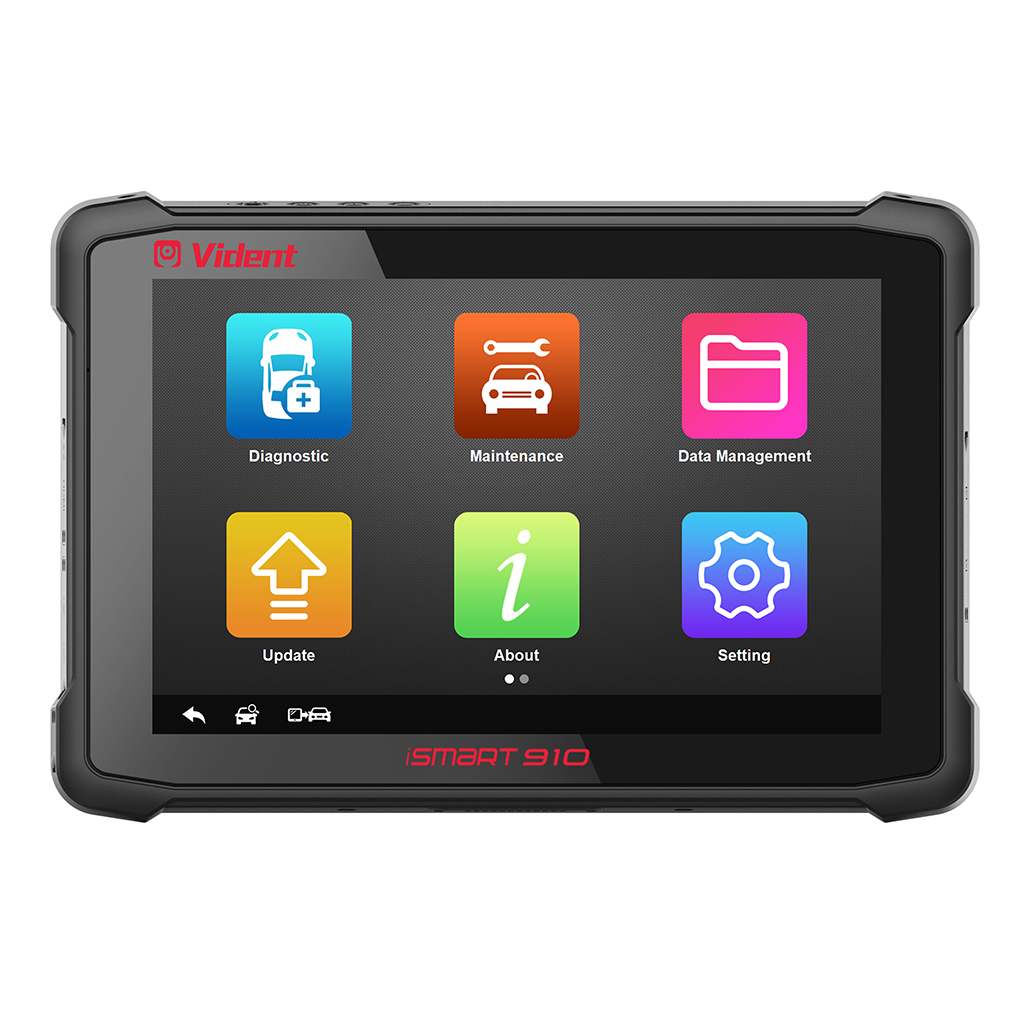

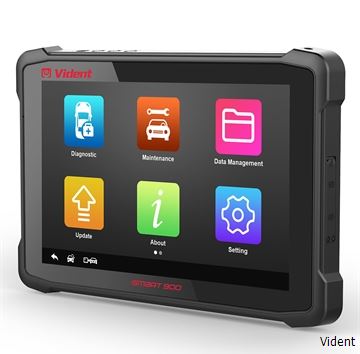

Vident iSmart910 is a IP67 rated, windows tablet based scan tool featured with intuitive user interface, sophisticated diagnosis, wide vehicle coverage, advanced graphing, bi-directional component tests, component calibration, module coding and programing. It utilizes a 10.1“ high resolution IPS LCD touch screen (1280 x 800), a secure, solid-state 64GB hard drive and a Intel Quad-core processor that delivers boot-up in less than 30 seconds, the multitask-capable windows 10 Operating System to offer you the best intuitive user interface and user-customizable configuration. With an unusual combination of sophistication and simple operation, iSmart910 is suited to any tech—from rookies to seasoned diagnostic specialists.
  • Operating System Windows 10 Home
    Processor intel Cherrytrail Z8350
    Memory 2GB RAM & 64GB ROM
    Display 10.1" 800*1280 IPS LCD touch screen
    Storage Extend 128GB SD/TF
    Charging interface DC2.5MM
    Touch screen support
    G-sensor support
    Camera  Front:2.0MP  with indicator light, Rear 5.0MP
    Audio Output/Input 3.5mm standard earphone jack; output resistance2.2kΩ
    Power and Battery 8500mAh polymer li-ion battery
    Input Voltage DC/12 V (9-35 V)
    Operating Temperature -10 to 50°C (14 to 131°F)
    Storage Temperature -30 to 70°C (-4 to 158°F)
    Dimensions (W x H x D) 540mm*390mm*130mm
    Weight of Kit 6.25kg
  • Mercedes Benz 38pin Adapter
    BMW 20pin Adapter
    PSA 2pin Adapter
    Fiat 3pin Adapter
    GM/Daewoo 12pin Adapter
    Kia 20pin Adapter
    Mitsubishi/Hyundai 12+16pin Adapter
    Nissan 14pin Adapter
    Honda 3pin Adapter
    Toyota 17pin Adapter
    Toyota 22pin Adapter
    Mazda 17pin Adapter
    Audi 4pin Adapter
    OBDII Adapter
    Cigarette Lighter
    AC/DC Adapter(12V)
    Diagnostic Cable
    AC/DC Adapter(14V)
    Clip cable
    User’s Guide
    Carrying case
  • Name Download
    iSmart Series Automotive Diagnostic System User Manual V.1.00.pdf
