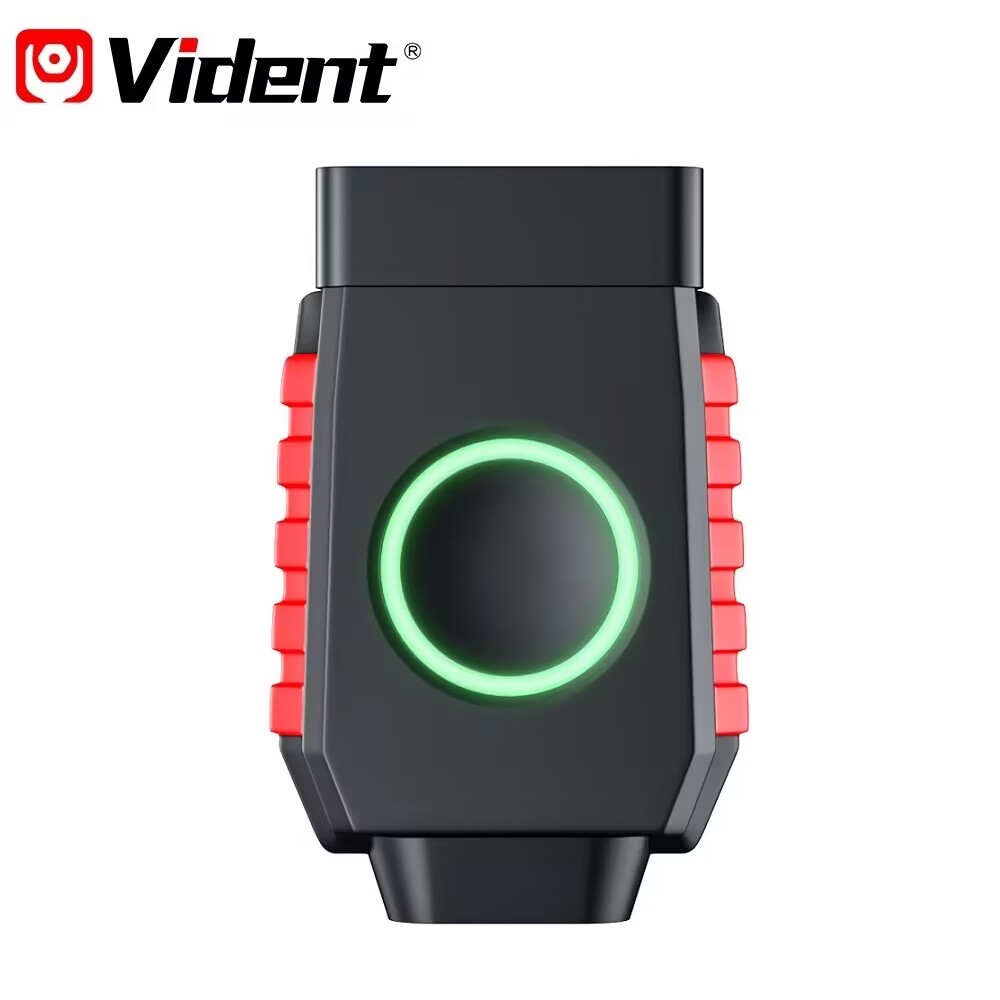

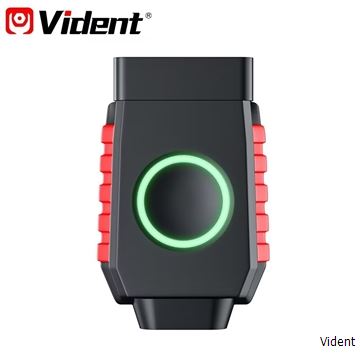

 iSmartDiag500 Familly Car Diagnostic Tool

The iSmartDiag500 full system scan tool support 3 free car brands installation, which offers OE level diagnosis for all system electronic control units. It's not only support basic diagnostic functions like read/erase fault code, live data, active test, but also capable with advanced functions like off-line coding and adaptations. In addition, it provides some commonly required service functions, such as Oil Light Reset, Injector Coding, Electronic Parking Brake Service, Battery Configuration, Steering Angel Sensor Calibration, DPF etc.
  • Operating Temperature: 0 to 60°C (32 to 140°F)
    Storage Temperature: -20 to 70°C (-4 to 158°F)
    Power Supply: 8 to 18V provided via vehicle

    Supported Protocols: ISO15765(CANBUS 11bit&29bit TP16,TP20,UDS,FIAT CAN,VOLVO CAN), ISO14230(KWP2000),ISO9141-2,J1850VPW,J1850PWM,KWP1281,KWP2089,KW81,KW82,

    ALDL,SCI,DSI,DSII,LUCAS,MELCO,BENIX, ISO7800,SIMENMS_ISO1,SIMENMS_ISO2, CAN FD, DoIP

    Dongle Size: 78*53*21mm (L*W*H)
    Box Size: 135*88*26mm (L*W*H)
    Weight: 96g
    QTY/CTN: 50 Units
    Weight/CTN: 4.8KG
    Carton Size: 461*290*157mm

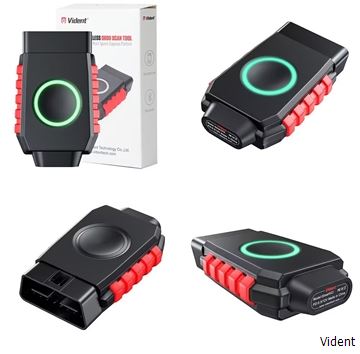

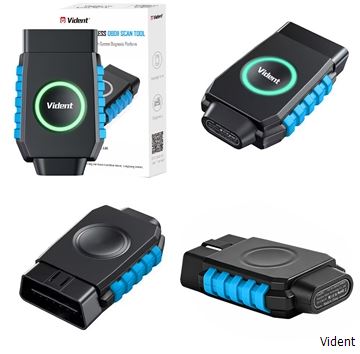

  • 1. VCI Adapter

    2. Password Paper

    3. Quick User Guide

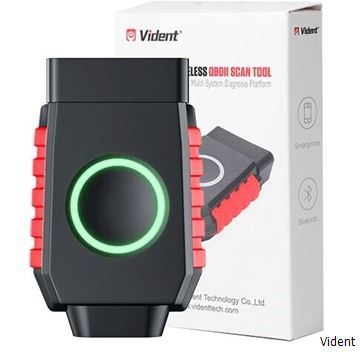

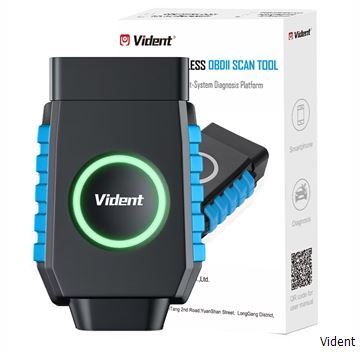

    4. Packing Box

  • Name Download
    iSmartDiag USER GUIDE.pdf
