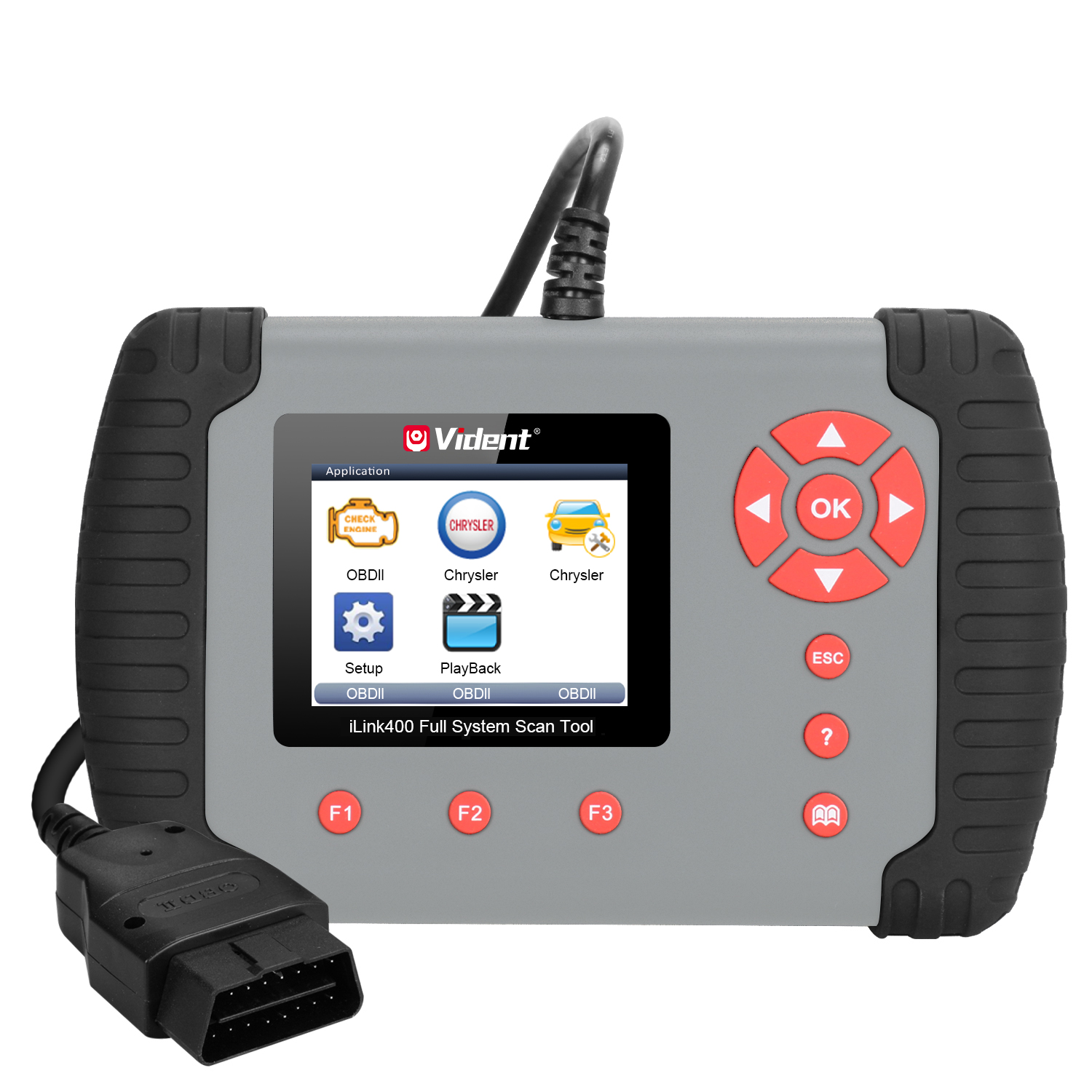

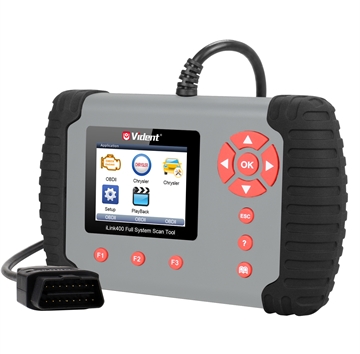

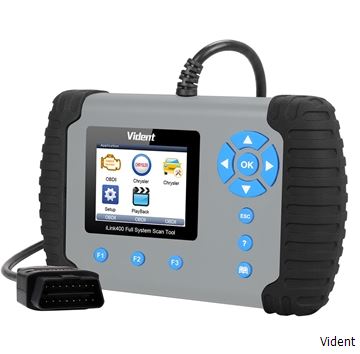

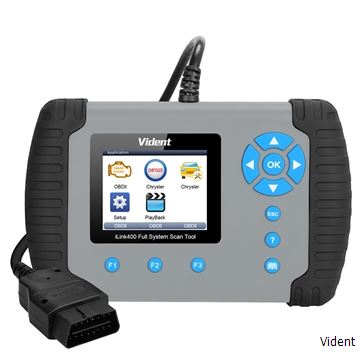

 iLink400 Full System Single Make Scan Tool

iLink400 Full System Single Make Scan tool is the most cost-effective professional multi-system scan tool that delivers OE-level diagnosis for all electronic systems of different car brands.

It does not only include basic functions such as read/erase codes and live data, but also it's capable of advanced functions such as actuation, adaptation and programming. In addition, it lets you to access the most commonly required service features such as Oil service Light Reset, Throttle Body Alignment, Electronic Parking Brake Service, Battery configuration, Steering Angel Sensor Calibration, CBS correct and much more.

  • Note:


    Supported function depends on specific car type and year. (Supported function for 1 car make doesn't surely apply to all subtypes of this car make.)It is suggested that before purchase you can offer your car information, VIN code and required function to dealers/sellers for confirmation.


  • Display: 2.8” Backlit, 320X240 TFT color screen
    Operating Temperature: 0 to 60°C (32 to 140°F)
    Storage Temperature: -20 to 70°C (-4 to 158°F)
    Power: 8 to 18 V provided via vehicle

    Supported Protocols: ISO15765(CANBUS 11bit&29bit TP16,TP20,UDS,FIAT CAN,VOLVO CAN), ISO14230(KWP2000),ISO9141-2,J1850VPW,J1850PWM,KWP1281,KWP2089,KW81,KW82,

    ALDL,SCI,DSI,DSII,LUCAS,MELCO,BENIX, ISO7800,SIMENMS_ISO1,SIMENMS_ISO2

    Tool Dimensions: 194*117*47mm (L*W*H)
    Color Box: 220*165*85mm (L*W*H)
    Weight: 0.9KG
    QTY/CTN: 32SETS
    Weight/CTN: 29KG
    CTN MEAS: 64.2*51.8*36cm
  • iLink400 Full Scan Tool
    User’s Guide
    Memory Card
    Password Paper
    Leather Carrying Pouch
  • Name Download
    Software Update Client iScanzilla Installer
    iLink400 Update Guide v2.0.pdf
    iLink Series Scan Tool User Manual.pdf
